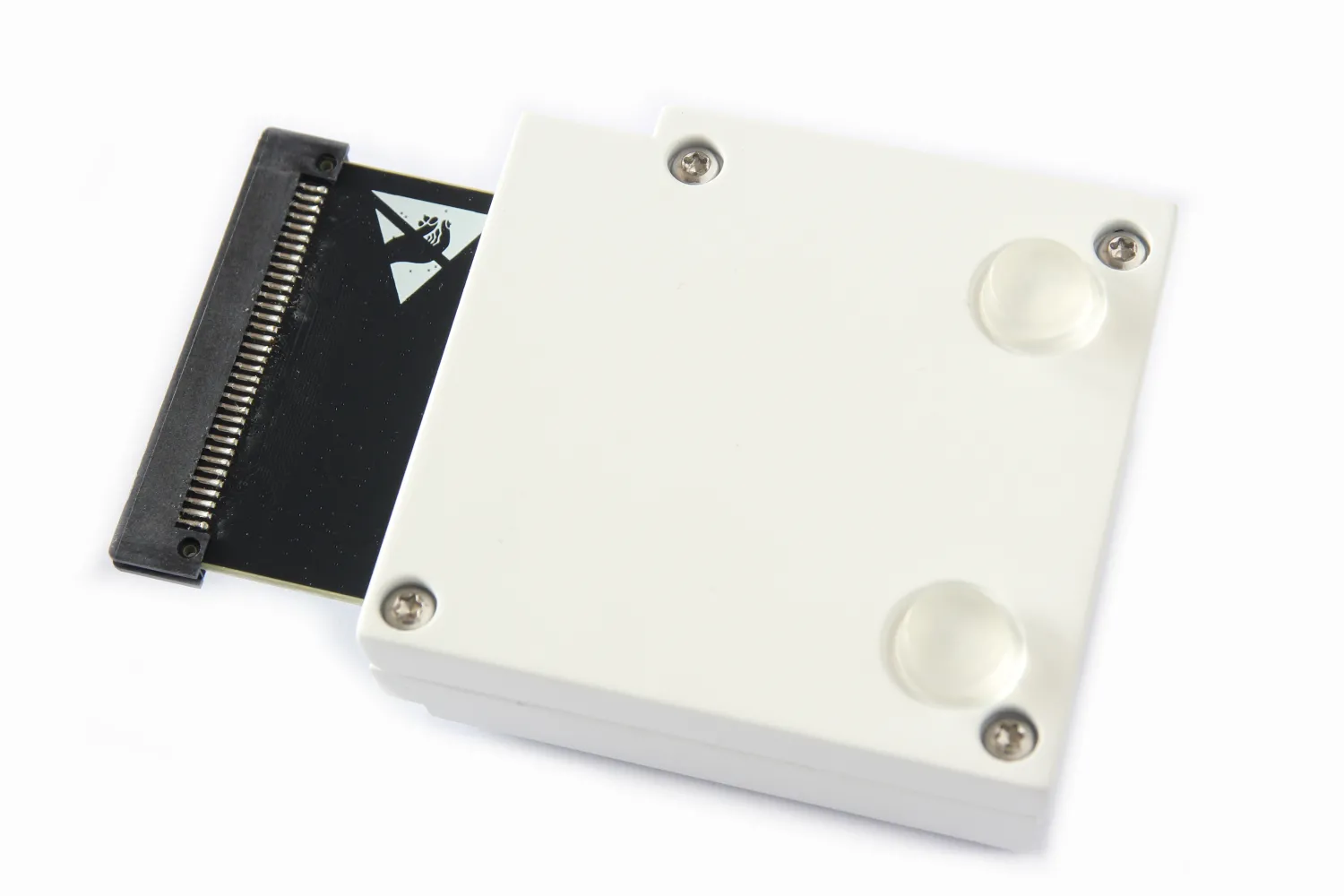

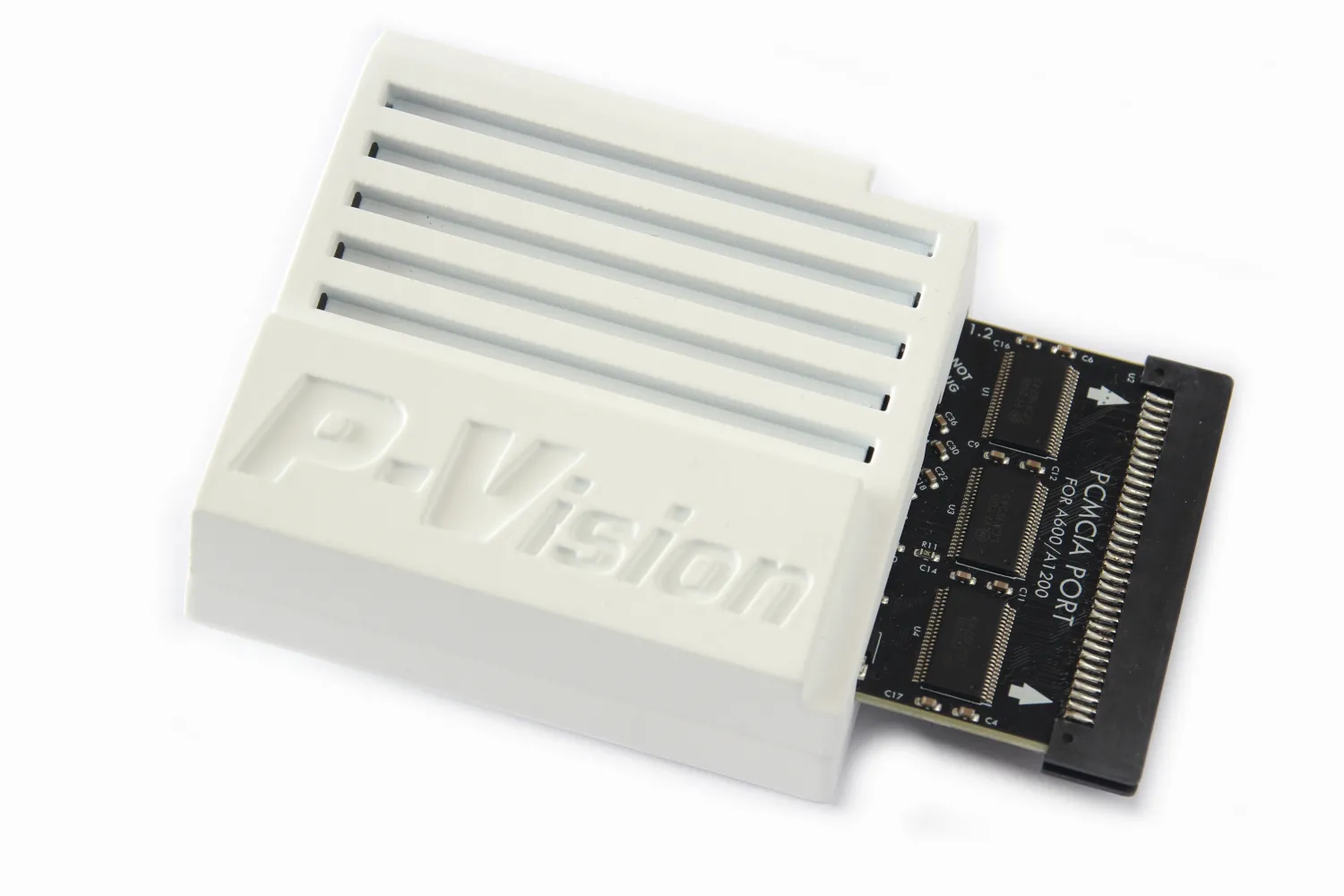

P-Vision - PCMCIA graphics card for Amiga 600/1200

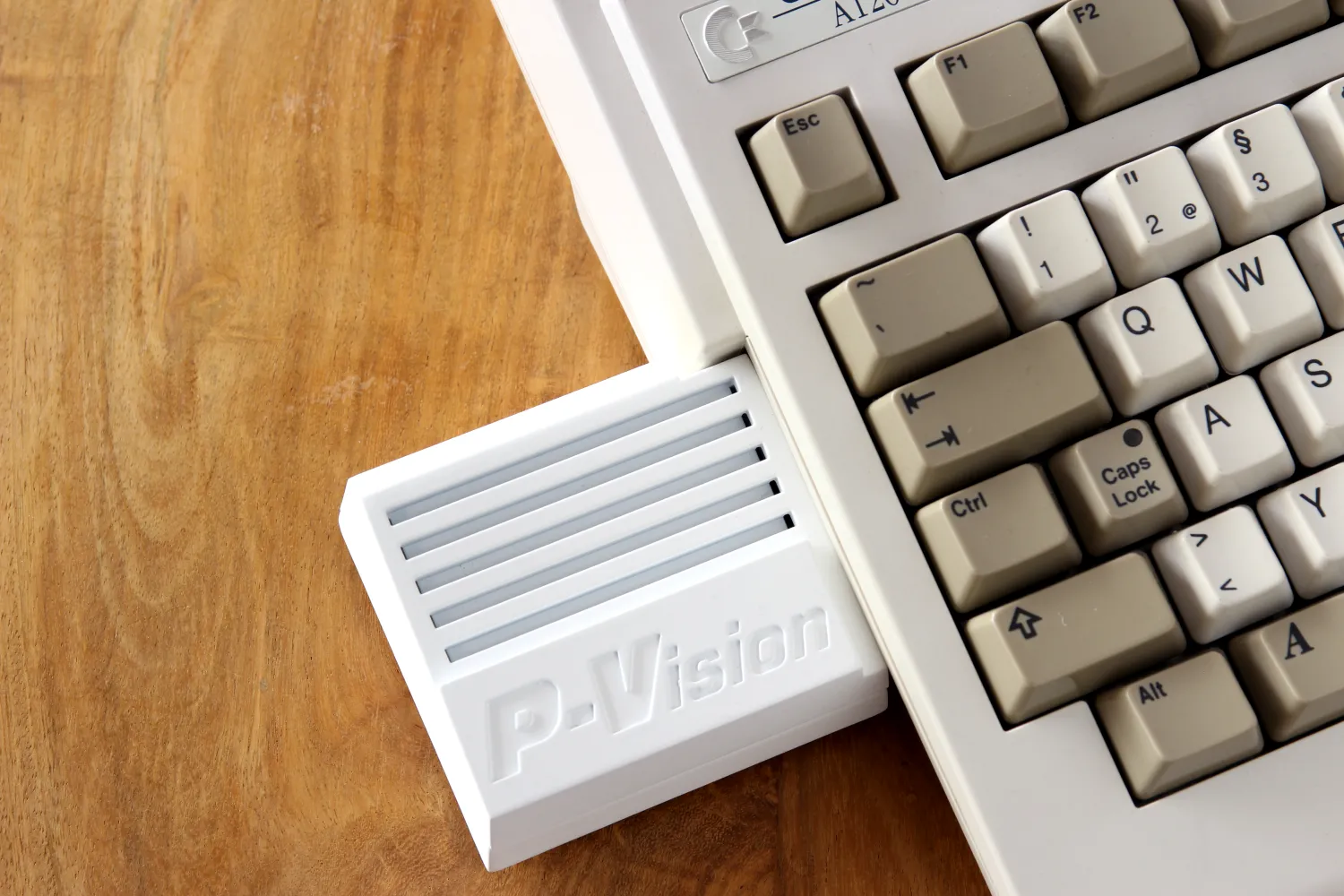

The P-Vision was designed to provide a fast, high-resolution video output interface for all PCMCIA equipped Amigas such as the Amiga 600 & 1200. All video processing makes extensive use of hardware acceleration in order to enable these features even on low-end Amiga configurations.
The P-Vision case is still in development and will go into production soon. All customers will then have the option to purchase the case separately.

P-Vision Key Features

• Fast 16-bit PCMCIA interface
  • 3.5 MB/s on Amiga 600
  • Up to 9.5 MB/s on Amiga 1200
• Digital video output interface
  • 8, 16 and 32-bit color modes
  • Wide range of supported display resolutions (12-85MHz clock), supporting Full-HD resolution
  • 64x64 hardware sprite and smooth scrolling
  • Programmable display processor for flexible display synchronisation and palette context management
• 32 MB video memory
  • 200MHz, up to 360 MB/s total memory bandwidth
  • Hardware memory paging for MMU equipped Amigas
  • 4 MB VRAM for non-MMU equipped Amigas
• 64-bit Hardware BitBlt engine
  • 90MHz, up to 360 Mio pix/s
  •  Fast rectangular blits - up to 32768x32768 size
  •  Logical function unit with pixel/color bit masking support
  • 16x16 Mono pattern with color expansion & direct host interface for dithering & fast text rendering

System Requirements

In order to make full use of P-Vision features, the following range of system configurations is supported.


Minimum Configuration

• Amiga 600 computer
• 1 MB Chip, 4 MB Fast-Ram
• 68020 CPU, 14MHz
• Kickstart 3.1
• P96 V3.3.0 (see www.icomp.de)

Recommended Configuration

• Amiga 1200 computer
• 2 MB Chip, 16 MB Fast-Ram
• 68030 CPU, 25MHz
• Kickstart 3.2.x
• P96 V3.6.2 (see www.icomp.de)

• P-Vision graphics card
• Printed manual in German and English

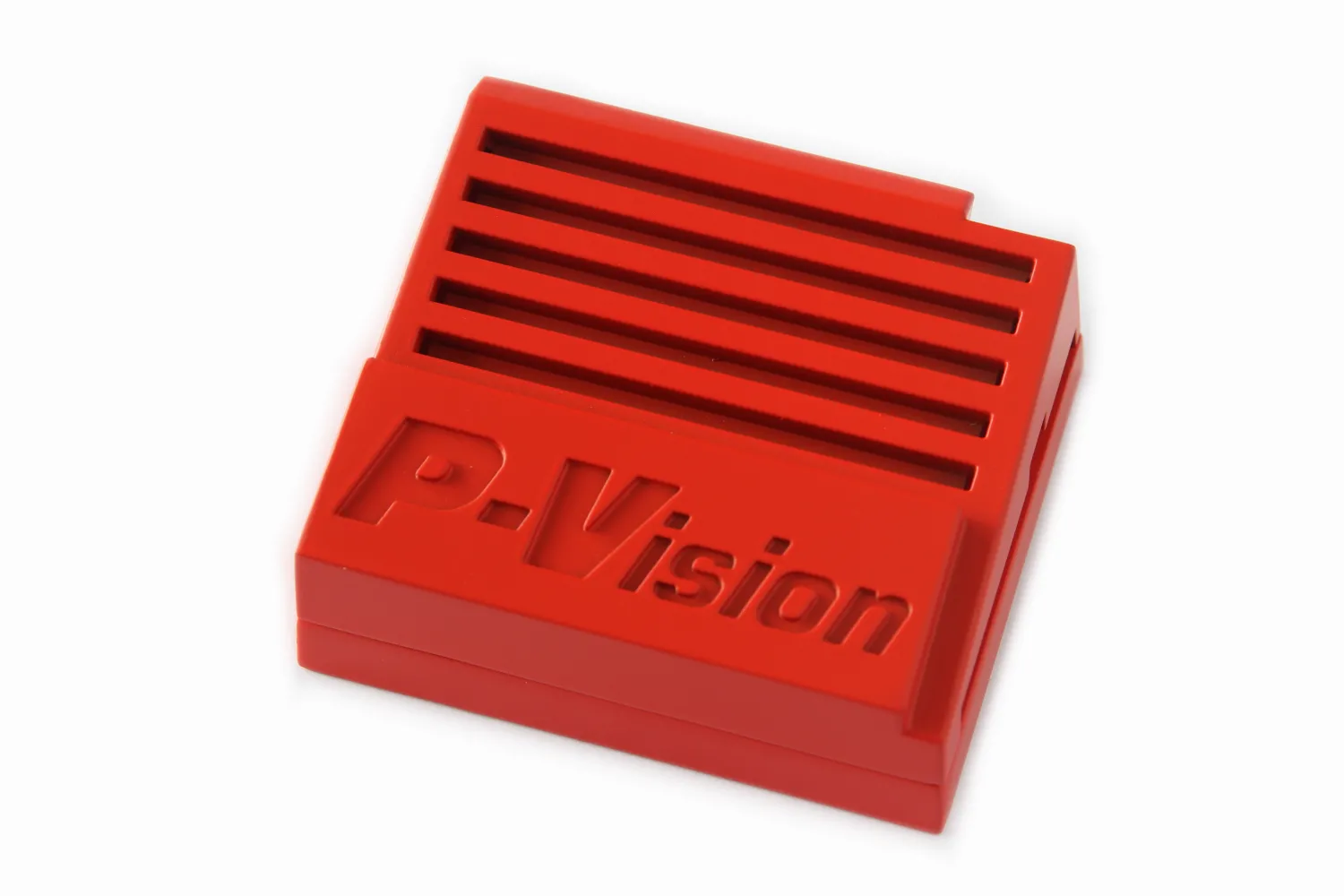

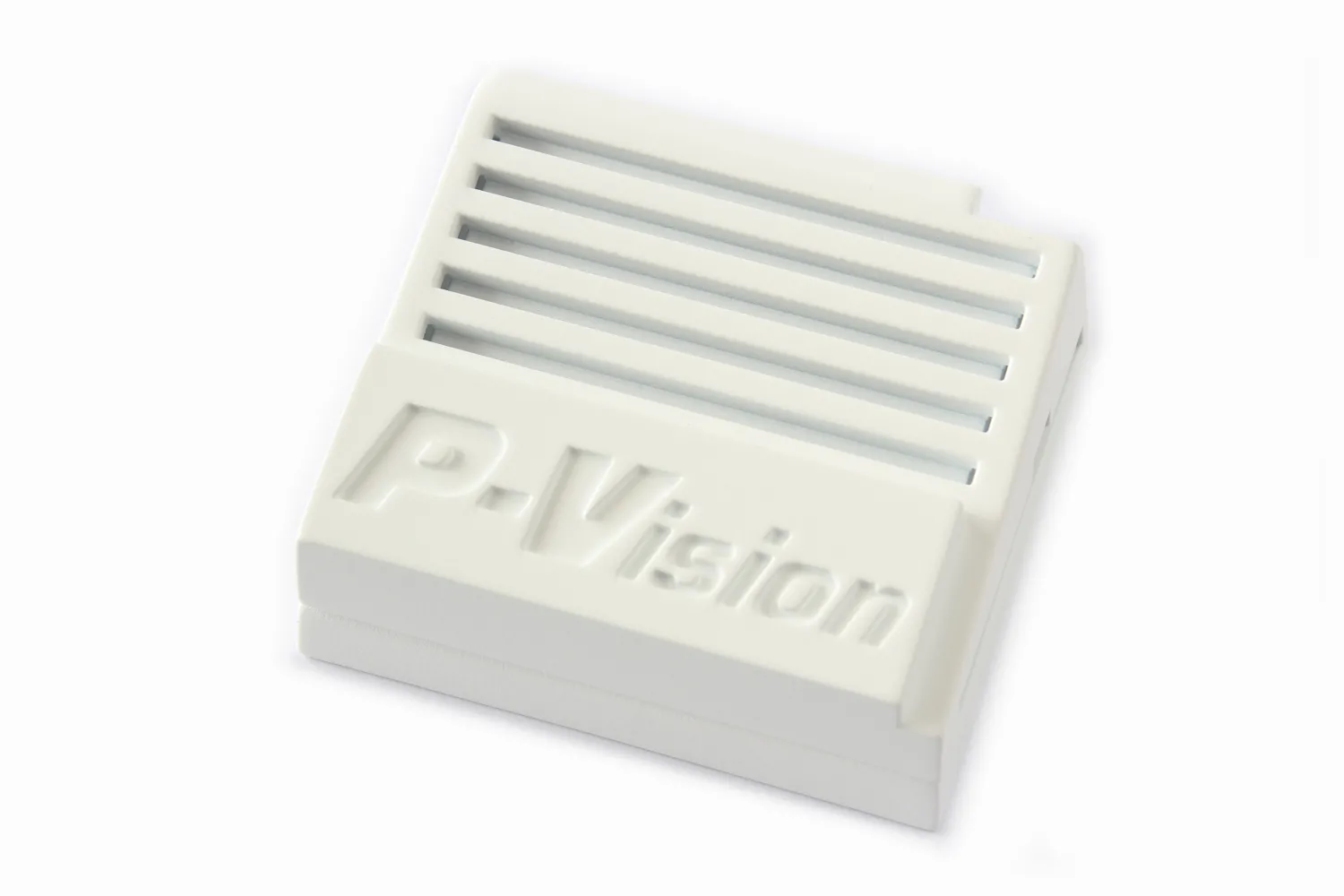

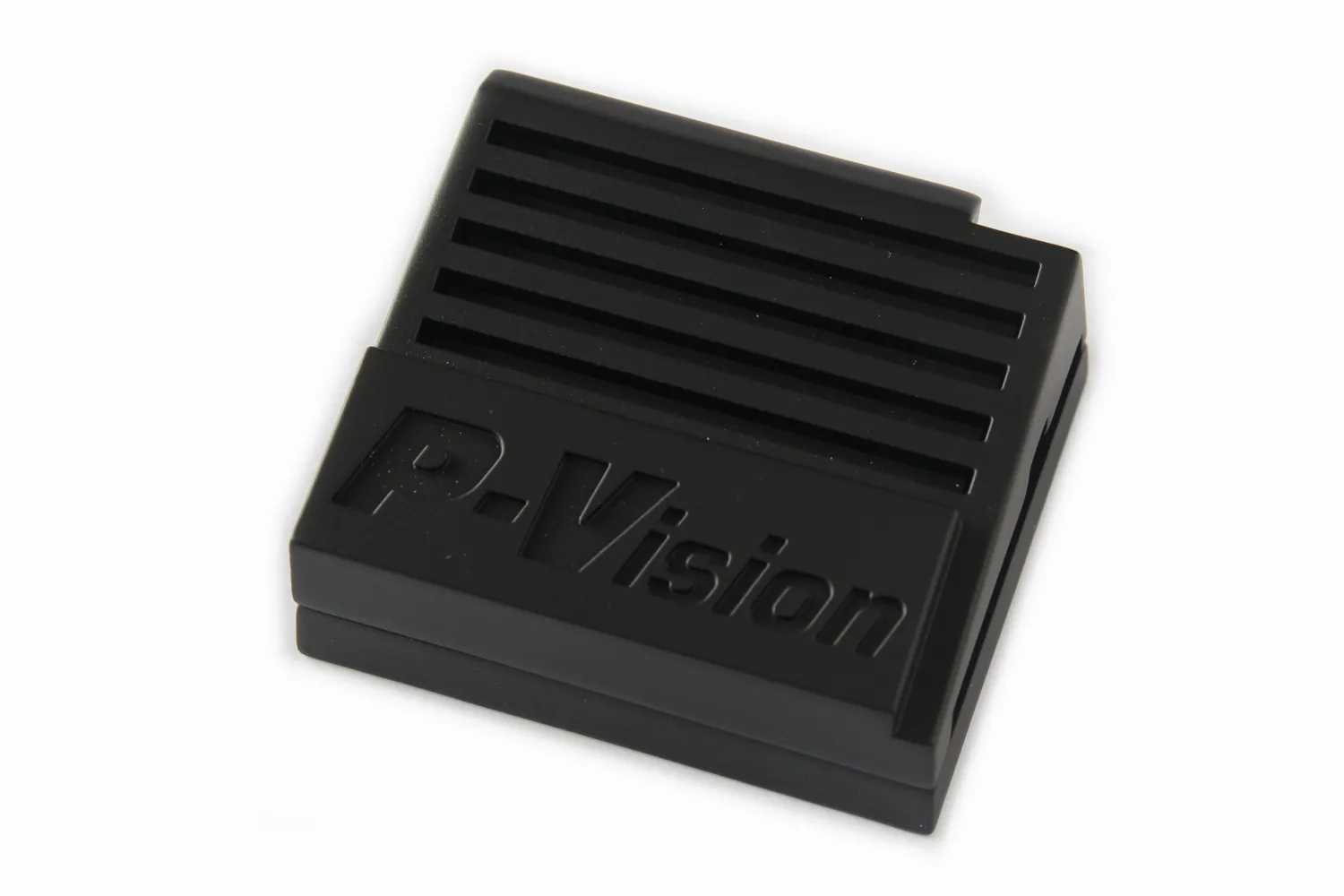

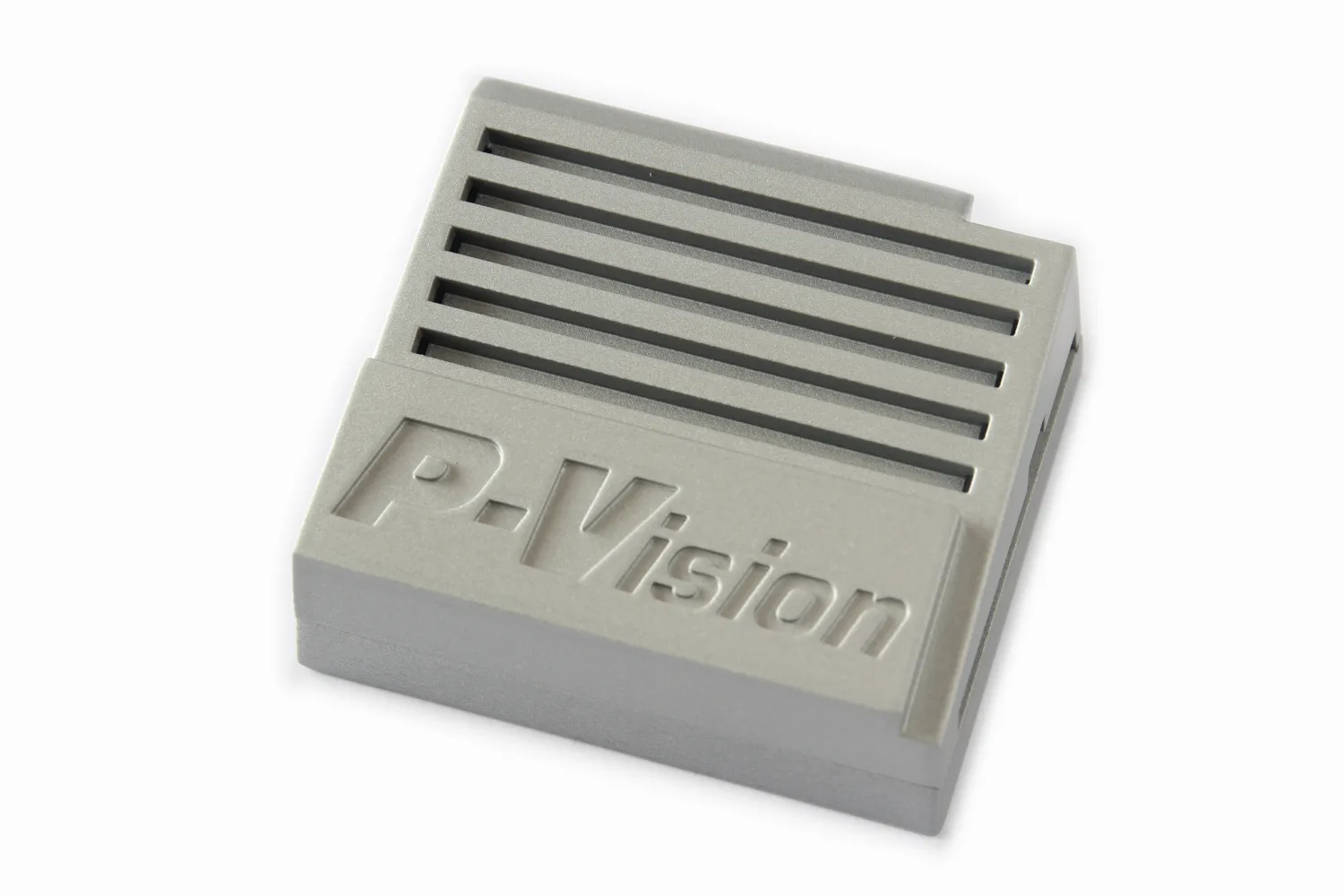

• Coming soon as a separate optional purchase: High-quality caseing in various colors

Driver: https://aminet.net/package/driver/video/pVision
Software: https://github.com/necronomfive/P-Vision_pub
