Amiga 1200 LED rear panel / WLED controller

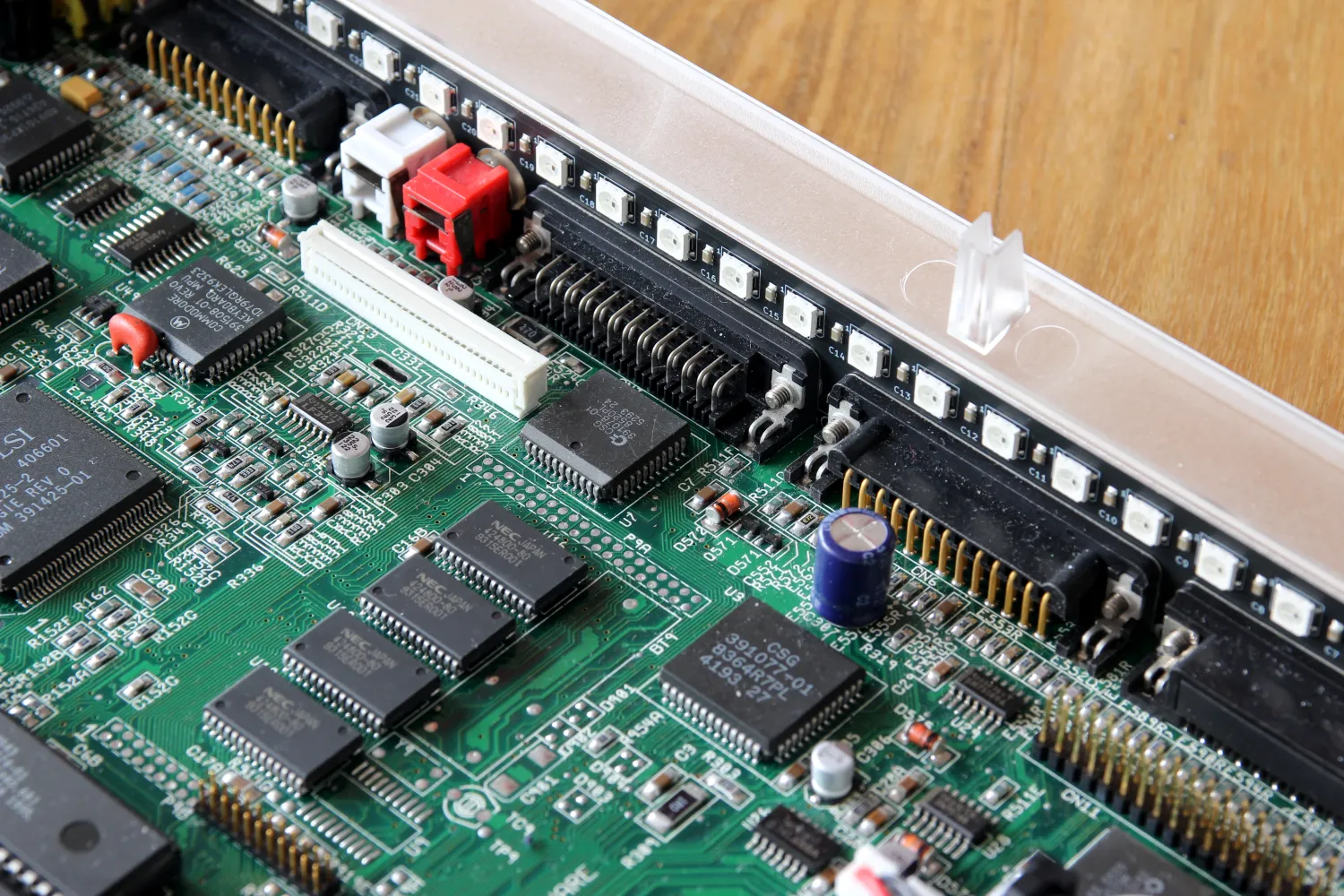

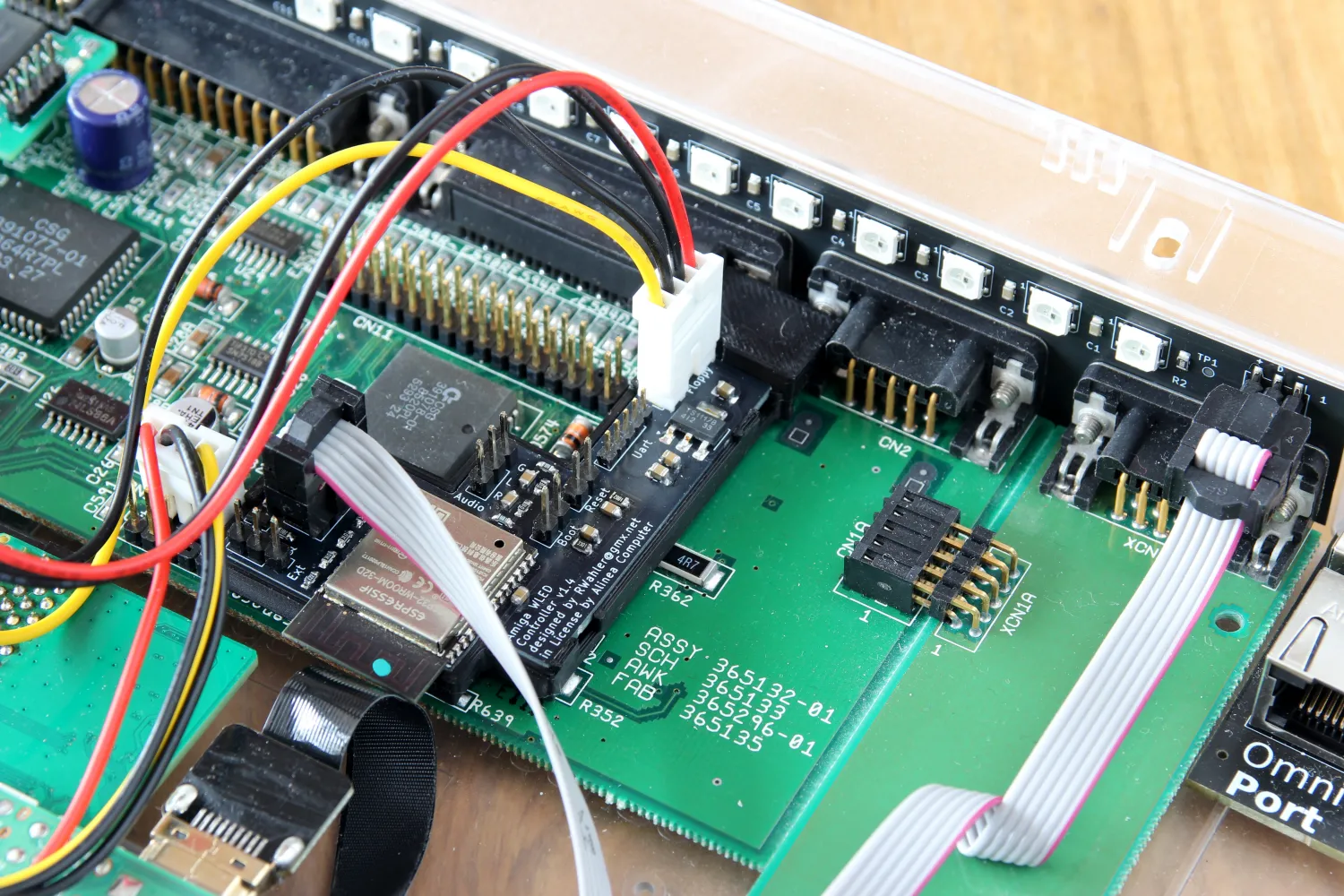

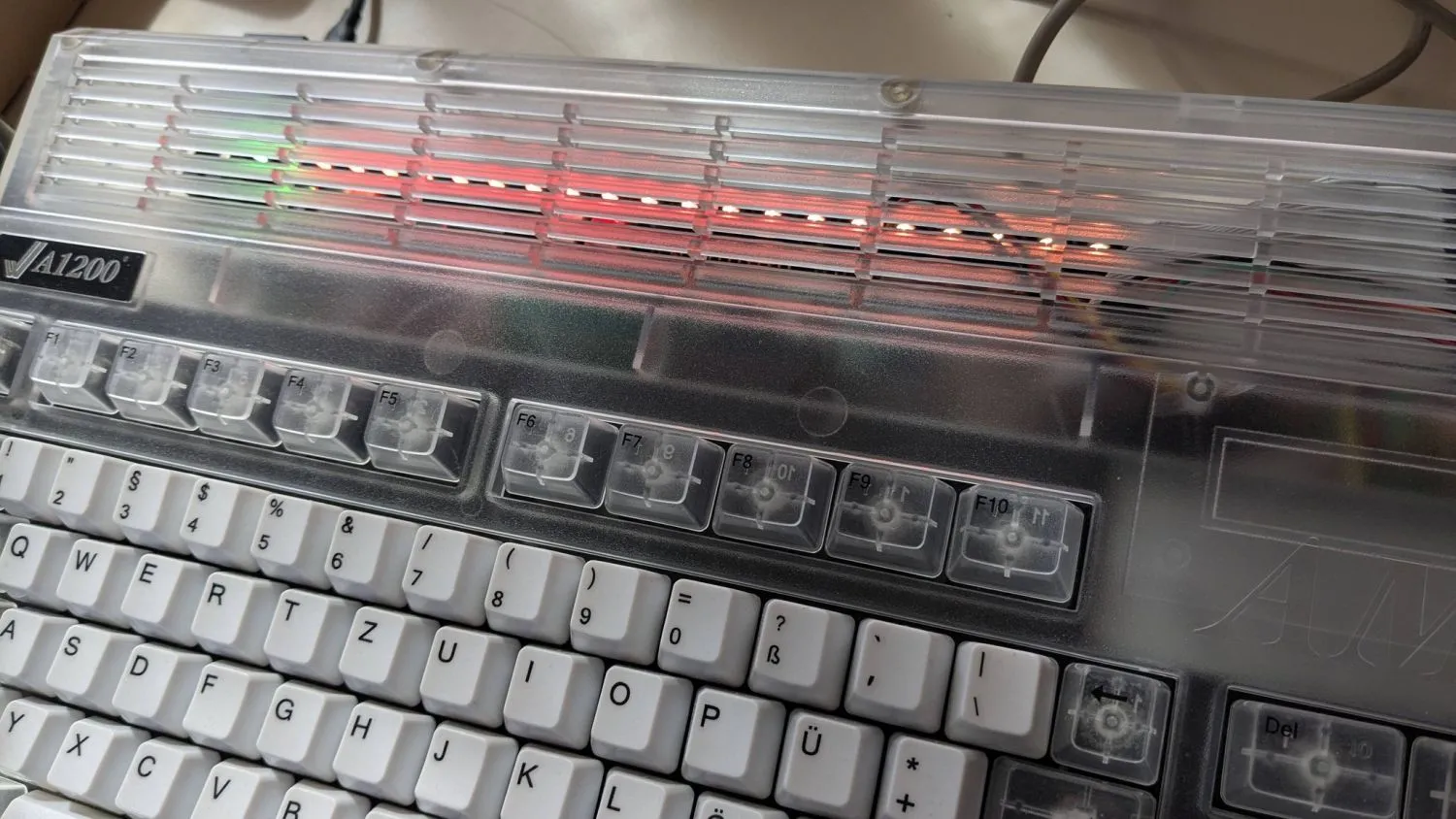

With the LED rear panel, when used in conjunction with the WLED controller, you can illuminate your Amiga 1200 and control the lighting via a browser or an app on your mobile phone using Wi-Fi. Depending on the model, the LED rear panel features 10 or 30 RGB LEDs to provide optimal illumination for the Amiga (selectable above). To do this, the LED rear panel is connected internally to the WLED controller via a cable supplied with the kit. The WLED system then gives you access to countless effects and colour settings for the RGB LEDs. Furthermore, the Amiga’s audio signal can be connected to the WLED controller to control the LEDs.

You can find out more about the WLED system at: https://kno.wled.ge/

Features

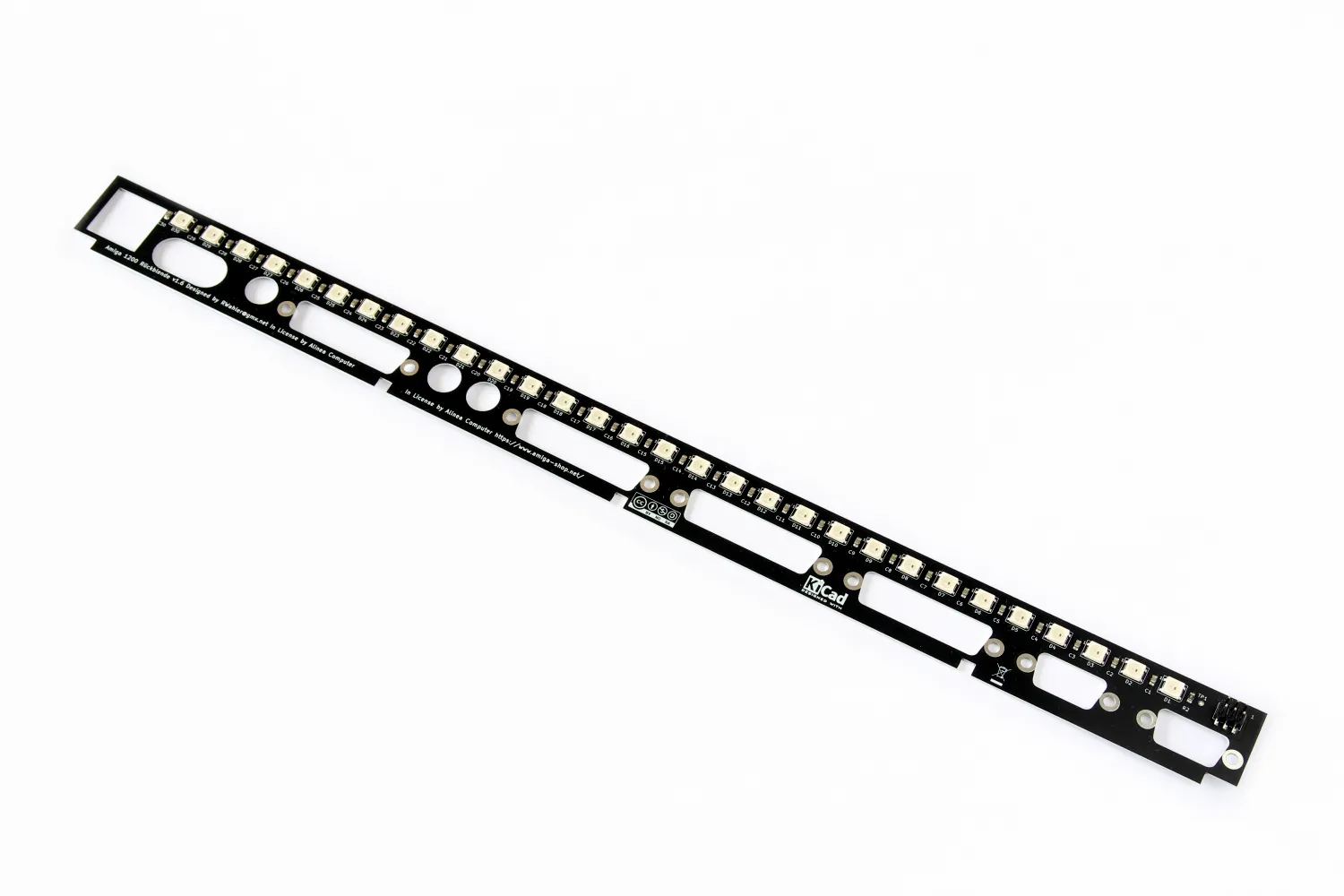

•     • LED rear panels with 10 or 30 RGB LEDs for perfect illumination of your Amiga (selectable above)
•     • LED rear panels are also compatible with third-party controllers, such as Solas
•     • The WLED controller works with the WLED system and offers countless effects and color settings. For more information, visit: https://kno.wled.ge/
•     • Can control up to 2 independent LED strips of any type
•     • The audio jack on the WLED controller allows the Amiga's audio signal to be connected as a control source
•     • Reverse-polarity-protected connection between the WLED controller and the LED rear panel
•     • 3 Inputs for additional signals for lighting control

• Amiga 1200
• The old shielding plate must be removed

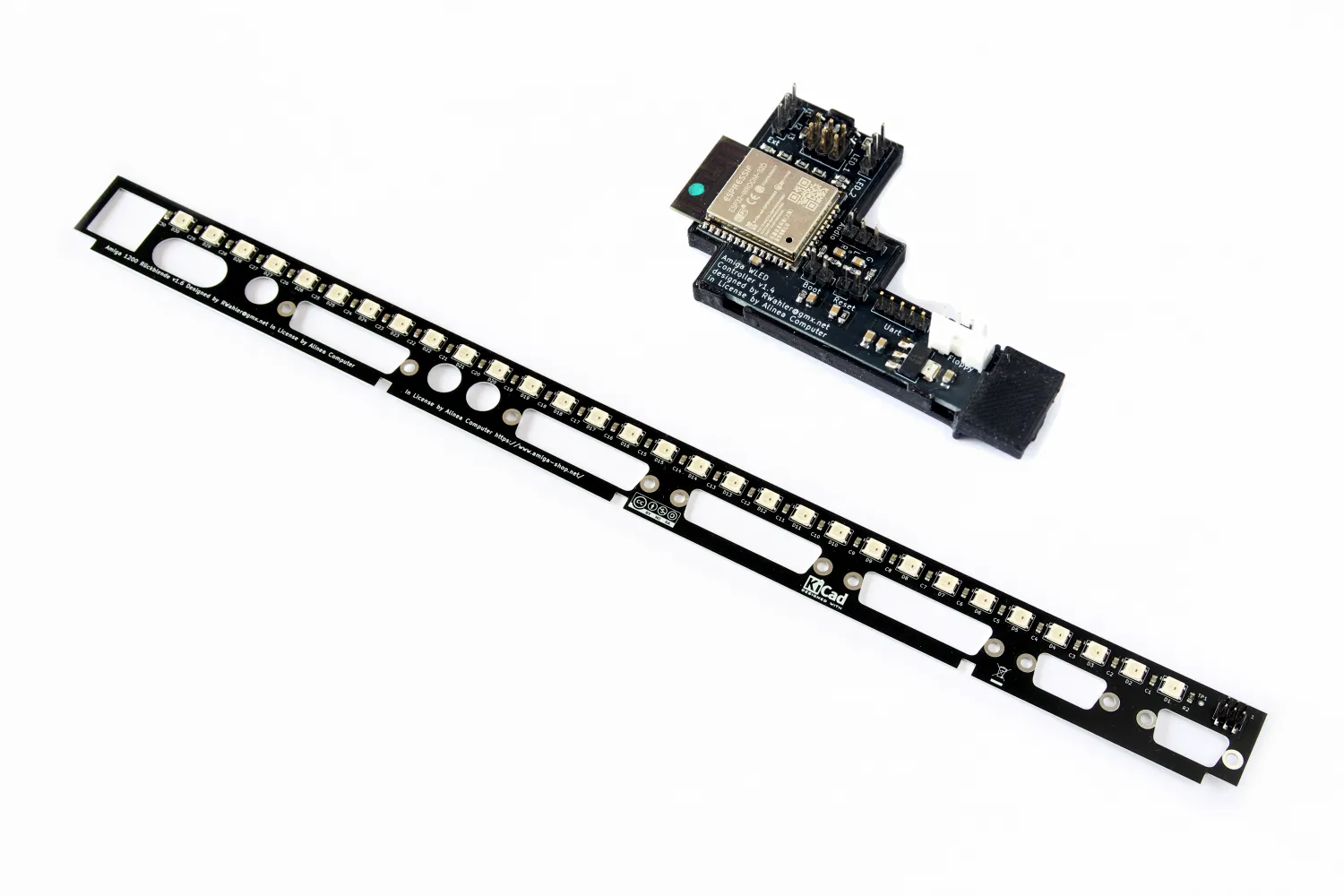

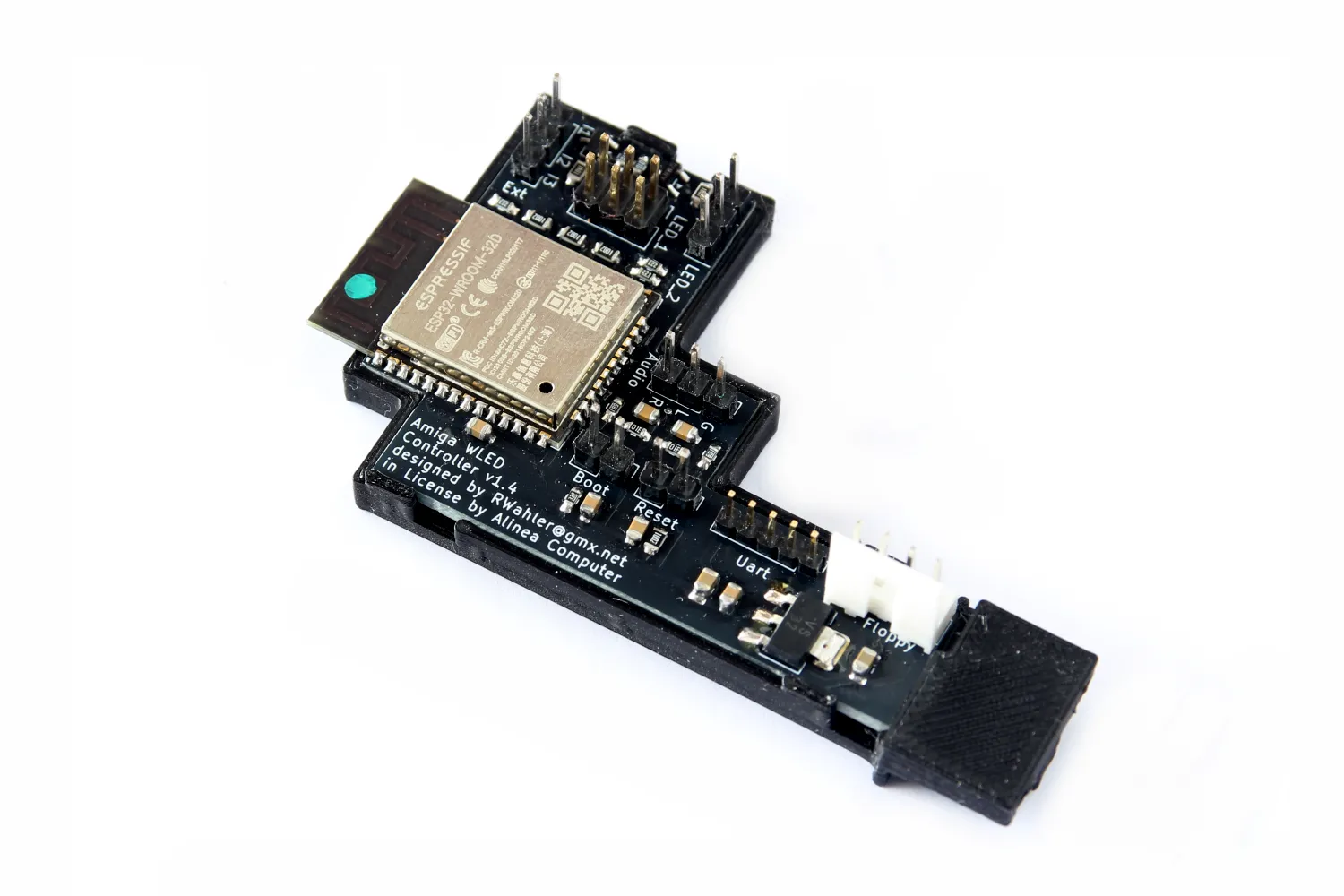

• When purchasing the Amiga 1200 WLED controller: Amiga 1200 WLED controller, including a PLA protective case and a 6-pin connection cable.

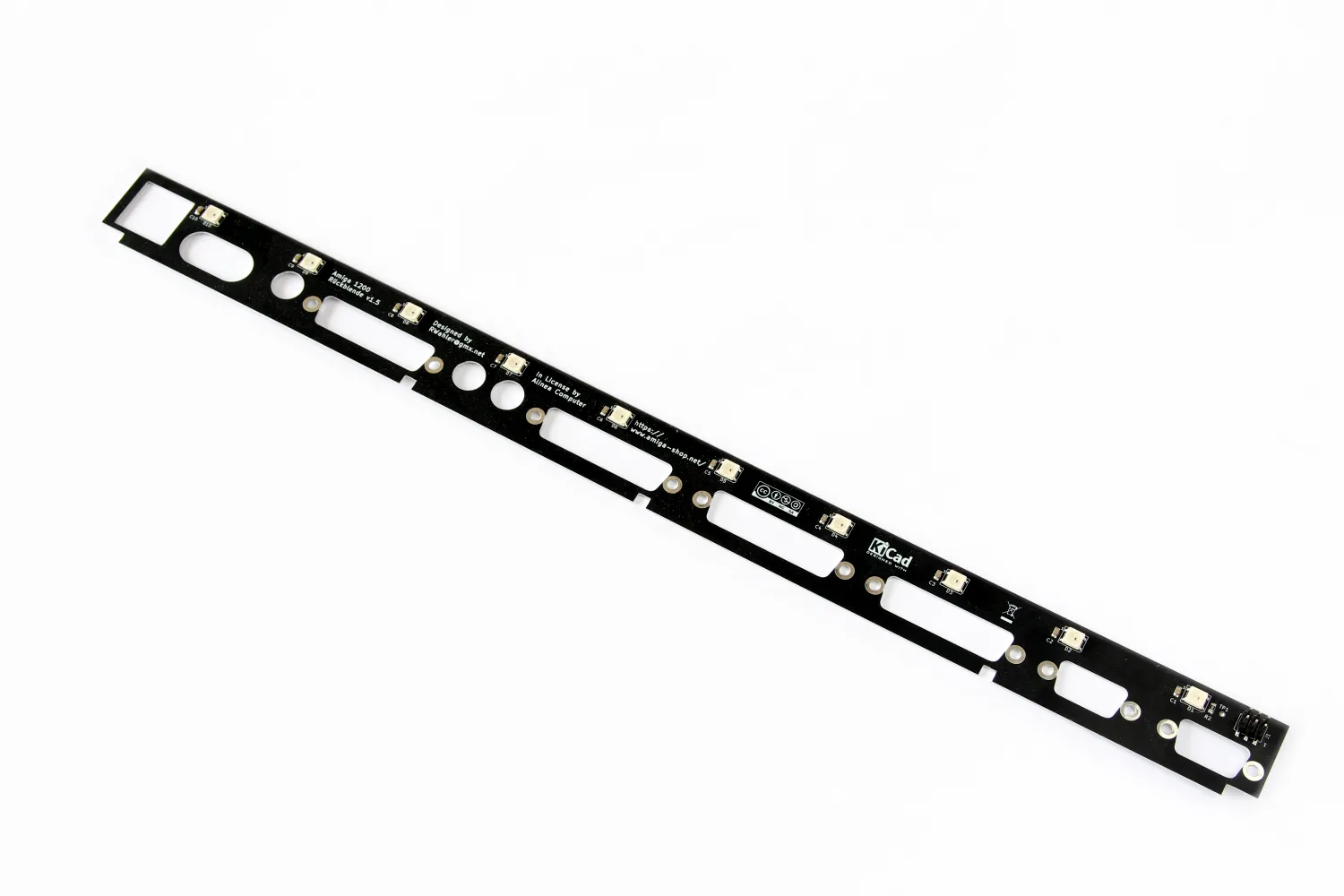

• When purchasing the Amiga 1200 LED rear panel: Amiga 1200 LED rear panel with 10 or 30 LEDs (selectable above)
• Optional: 2-port floppy drive power cable (selectable above)
•  Manual
