Laser upgrade for Amiga mice

This board replaces the old ball mechanism of your classic Amiga mouse by the ultimate laser technology. Based in the ADNS-9800 laser sensor, which is used in some high end devices for gamers and designers, this replacement board offers 8500 DPI and a better performance in surfaces that optical mouses.

This replacement board is compatible with the most common standard mice sold with Amiga 500/600/1200 computers. Two versions are available at the moment:

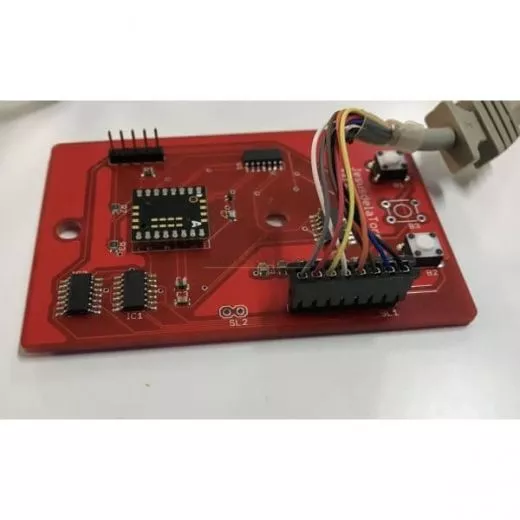

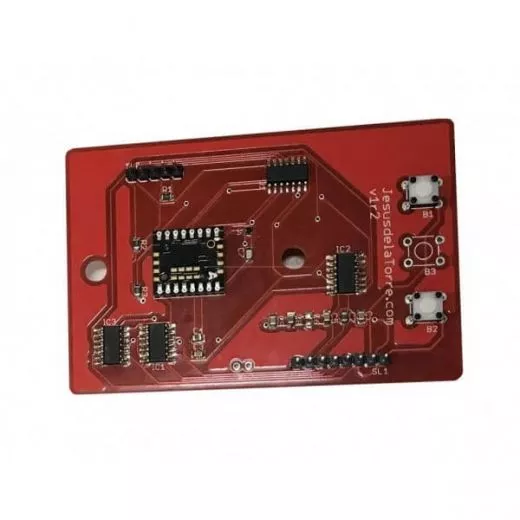

1. The 'Laser Tank PCB: is compatible with the well-known Amiga Tank model, sold predominantly with Amiga 500 and Amiga 600 systems. If this is your mouse, please choose the "Laser Tank PCB" version:

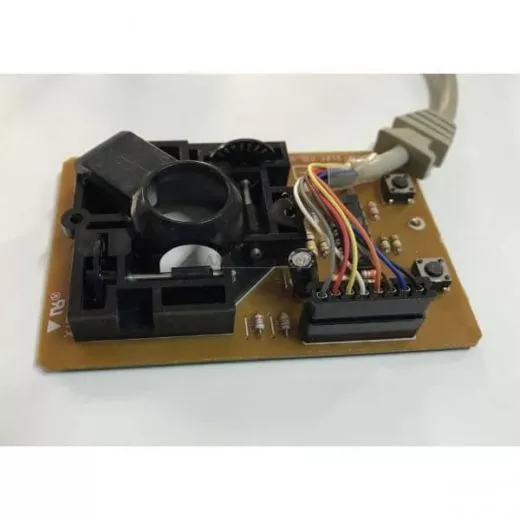

Amiga mouseamiga mouse inside

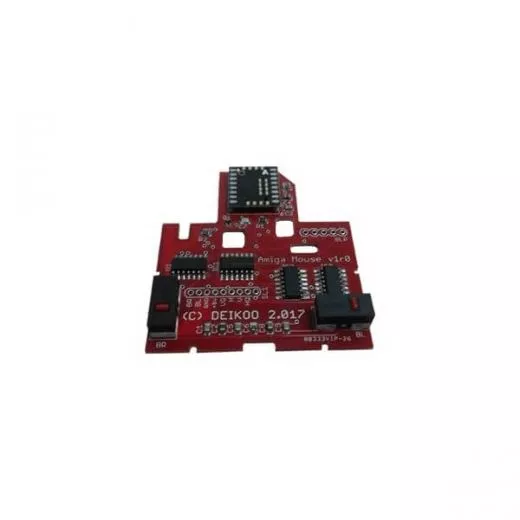

2. The 'Laser A1200 PCB: is compatible with the Escom mice sold with Amiga 1200 manufactured by Amiga Technologies. Please choose the "Laser A1200 PCB" version if you have one of these:

A1200 mouseA1200 mouse inside

ADNS-9800 Laser sensor features:

  • Resolution up to 8200 cpi with ~200 cpi step
  • Frame rate up to 12,000 fps
  • X and Y axes independent resolution setting
  • Compliance to IEC/EN 60825-1 Eye Safety
  • Class 1 laser power output level
  • 1 to 5 mm lift detection
  • On-chip laser fault detect circuitry
  • Self-adjusting frame rate for optimum performance
  • Motion detect pin output
  • Internal oscillator – no external clock input needed
  • 16-bits motion data registers
  • High speed motion detection up to 150 ips and acceleration up to 30 g
  • Advanced technology 832-865 nm wavelength VCSEL
  • Single mode lasing
  • Sleep and wake up times

Cross screwdriverer
Home scissors

The Laser Upgrade for Amiga mouses is covered by two-year warranty and includes the installation and user manual.


  • Laser Mouse type: Laser Tank PCB

Product Features

Hardware suited for ...Hardware suited for ...: Amiga 1000Amiga 1000 , Amiga 600Amiga 600 , Amiga 1200Amiga 1200 , Amiga 2000Amiga 2000 , Amiga 3000Amiga 3000 , Amiga 4000Amiga 4000 , Amiga CD 32Amiga CD 32 , Amiga CD TVAmiga CD TV



19 % VAT incl. excl. Shipping costs
