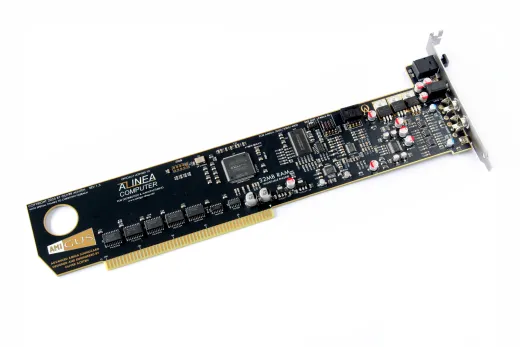

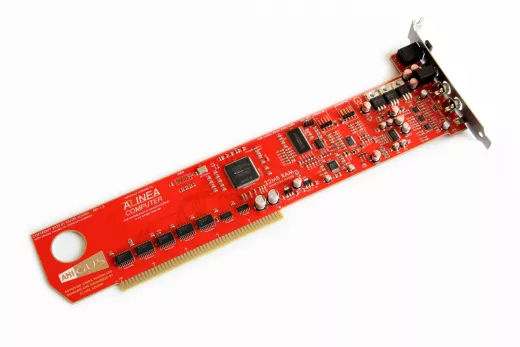

AmiGUS sound card for Zorro Amigas

GUS stands for "Great Unbelievable Sound", and that is exactly what we will be offering - a quantum leap in quality for Amiga sound cards.

No less than 24-bit, 192kHz is the premise here, and the good news is that this quality can be achieved on any Amiga, thanks to a fully featured hardware synth and mixing engine and CODEC chip for compressed sound formats.

Our goal is to bring high quality music production and reproduction back to the Amiga, making it an enjoyable experience for everyone.

AmiGUS Feature List

Zorro II card for Amiga 2000 / 3000 /4000 computers, or compatible bus boards.
Standard RCA stereo output, 192kHz @24-bit.
TOSLINK optical output, supporting 48kHz, 96kHz & 192kHz @24-bit.
3x analogue audio inputs (PAULA, CD-ROM, EXTERNAL), sampled at 192kHz @24-bit.
High-quality digital mixer which operates at full 192kHz @24-bit resolution.
AHI buffered stream interface, supporting 8-/16- & 24-bit modes for playback and recording.
MP3/OGG/FLAC/WMA hardware decoder (VLSI VS1063), enhanced by a powerful DMA stream buffer.
32 channel wavetable engine - featuring per voice:
8-/16-bit sample support, 192kHz @24-bit mixing rate.
Sample start, stop and loop pointer for effective one-shot or continuous playback modes.
32-bit sample phase accumulators for extra fine grained pitch definition.
Optional per-voice sample interpolation for smooth sounds.
Channel independent left / right stereo panning.
Hardware ADSR evelope generator.
32 MB on-board sample memory - ready to be used for Multichannel Sample Tracking or MIDI.
Flash-based mixer settings which are automatically loaded on start-up.
Upgradable FPGA Core via JTAG, or Amiga-based flash tool.
Open Hardware - Software, PCB Gerbers and FPGA Bitstream freely available.
