Subway 2021 USB card

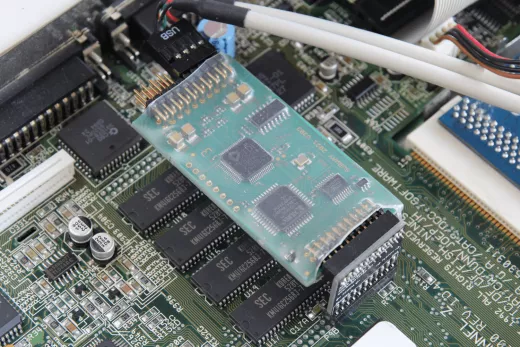

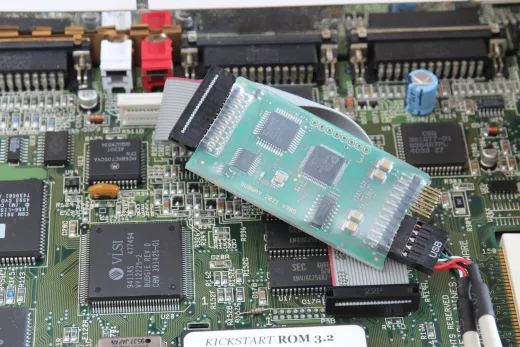

The Subway 2021 is a new version of the well-known Subway USB card that provides you with up to four USB interfaces on the Amiga with clock port. These interfaces are compatible with the USB 1.1 and USB 2.0 specifications (no high-speed mode) and can be routed to the outside via a standard mounting plate (on tower cases) or via the new OmniPort multiport adapter on the Amiga 1200 desktop case.
Features
- Compatible with USB 1.1 and USB 2.0 specifications (no high-speed mode)
- Integrated 4 port hub
- All ports are protected against overvoltage and overloading
- Integrated power management for all ports
- Energy-saving 3.3V technology
- Compatible with all 68030/040/060 and PPC accelerators
- No mechanical problems with Amiga 1200 busboards
- Compatible with all Amiga 1200 tower cases
- Standard Amiga 1200 clockport connector
- Highspeed clockport for faster data transfer
- Works on any Amiga 1200 compatible clockport
- 2 years warranty
Software
- Driver: ANAIIS USB stack (http://aminet.net/package/driver/other/anaiis), Note: The Poseidon USB stack is not compatible with the Subway 2021.
- The drivers support USB mice, keyboards, hubs, printers and mass storage devices.
System requirements
- Amiga OS 1.3 or higher, recommended 3.1
- Amiga with 68000 processor with 7 Mhz or higher, recommended 68030
- At least 1 MB Ram
Include
- Subway 2021 USB card
- 15 cm Clock port cable (if the clockport of the Amiga 1200 is fully equipped (Rev 1D1), a clockport angle adapter is needed)
- Manual
- Optional: mounting plate with two USB ports (selectable above)
- Professional tip for better installation: Clock port angle adapter
- Professional tip for neatly routing USB cables out of the Amiga 1200: OmniPort multiport adapter
Options:
- USB connector: none
- USB connector: Mounting plate with two USB ports (+¤ 5,99)
- USB 2.0 Pin Header cable 30 cm: No
- USB 2.0 Pin Header cable 30 cm: Yes (+¤ 4,99)
Product Features
Price:
from ¤ 119,95
19 % VAT incl. excl. Shipping costs
